Top Alliance Ltd boasts an extensive track record of fabricating high-quality conveyor elements for both local and international markets. Top Alliance has conceptualized and erected conveyor systems and parts present in the majority of mines, ports, and other expansive facilities handling bulk materials.

The Top Alliance assortment encompasses elements that strongly emphasize performance and dependability, catering to low, moderate, and heavy-duty applications across the complete spectrum of Top Alliance's conveyor rollers, idlers, pulleys, belt cleaners, and conveyor enhancements.

PRODUCT CATALOG

  • - Belt conveyors
  • - Ground mining ropeways GNR
  • - Belt loaders
  • - Rollers and roller supports
  • - Arch fastening metalware
  • - Anchor fastening metalware
  • - Flanged pipe
  • - Degassing pipe
  • - Valves, pressure reducing parts
  • - Electric engine repair

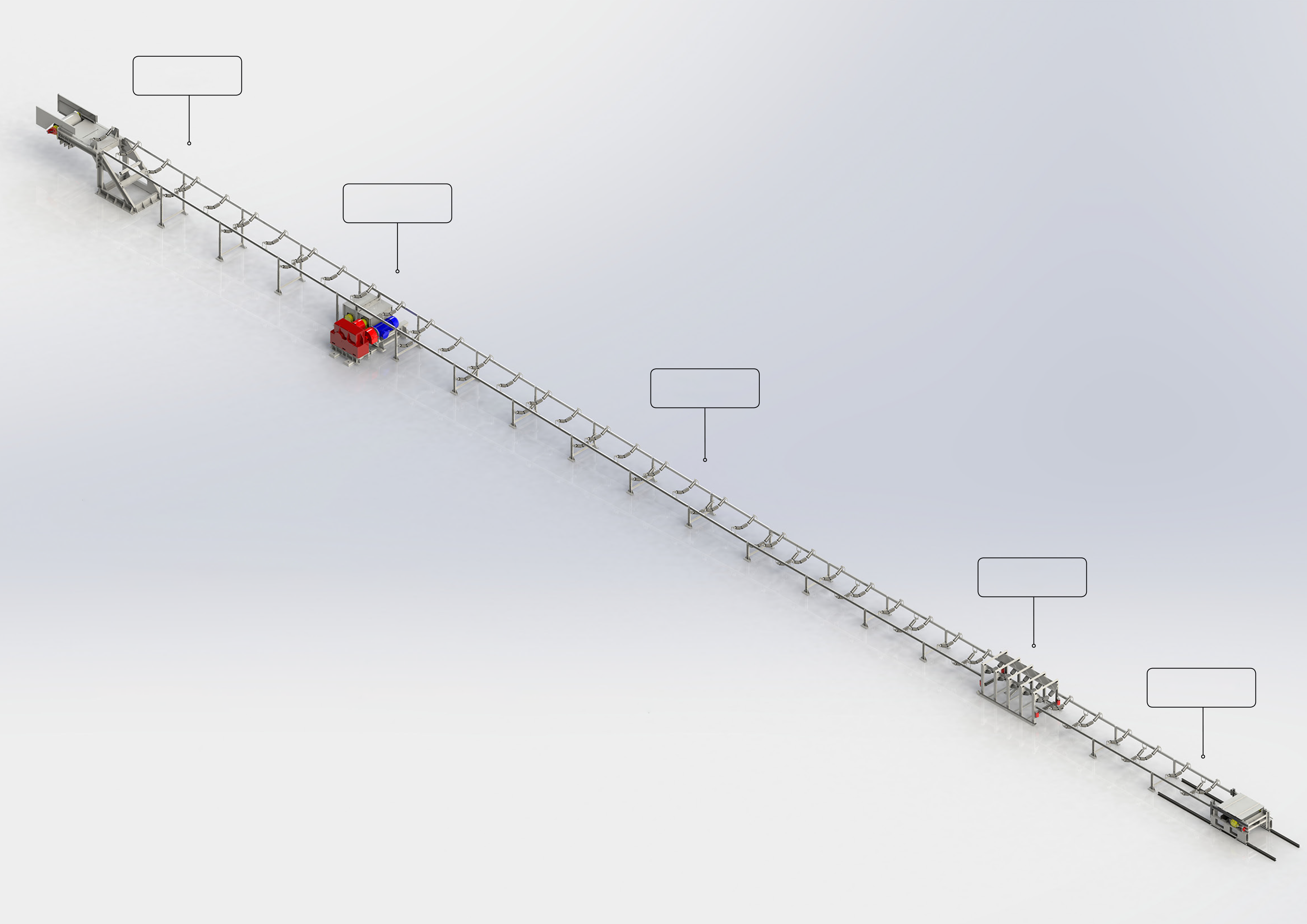

manufacteres manufacteres Unloading station Driving station Load bearing structure Loading station End station
Our company manufactures belt conveyors sized 800, 1000, 1200 for transportation of bulk and piece goods with different capacities and conveying speed.
Our company manufactures belt conveyors
sized 800, 1000, 1200 for transportation of
bulk and piece goods with different
capacities and conveying speed.
Transportation distance of
belt conveyors reaches several
kilometers, and their route can have a
different scheme, which allows conveyors to adapt
to the conditions of production and terrain.
L800T.05.05.000 DRIVING STATION

L800T.05.05.000 DRIVING STATION

The driving station is designed as a frame construction with left, right or universal drive arrangement. The drive type is single- or twin-engine, which may be mounted on clamps or flanges. Depending on the drive type and capacity, gearboxes Ts2N-450, Ts2N-630, Ts2N-710 are used for torque transmission. Type of housing (cast or welded) and gearbox design is subject to the chosen driving scheme.

L1000T.20.00.000-02 UNLOADING STATION

L1000T.20.00.000-02 UNLOADING STATION

The unloading station is designed as a frame construction. It is equipped with four belt cleaners (frontal and linear). Depending on the conveyor type, it can be equipped with deflector rollers, deflecting idlers Ø127 mm, Ø152 mm or drum Ø219 mm.

L800T.15.00.000 END TENSIONING STATION

L800T.15.00.000 END TENSIONING STATION

The end tensioning station is designed as a frame construction and serves structurally as an end and tensioning station. In case of L800 conveyors, it is supplied with one pulley for increasing of tensioning by 2-fold pulley tackle. In case of L1200 conveyors, it is supplied with a holding prop with a hydraulic tensioning sensor. To increase the tension, 8-fold pulley tackle is used.

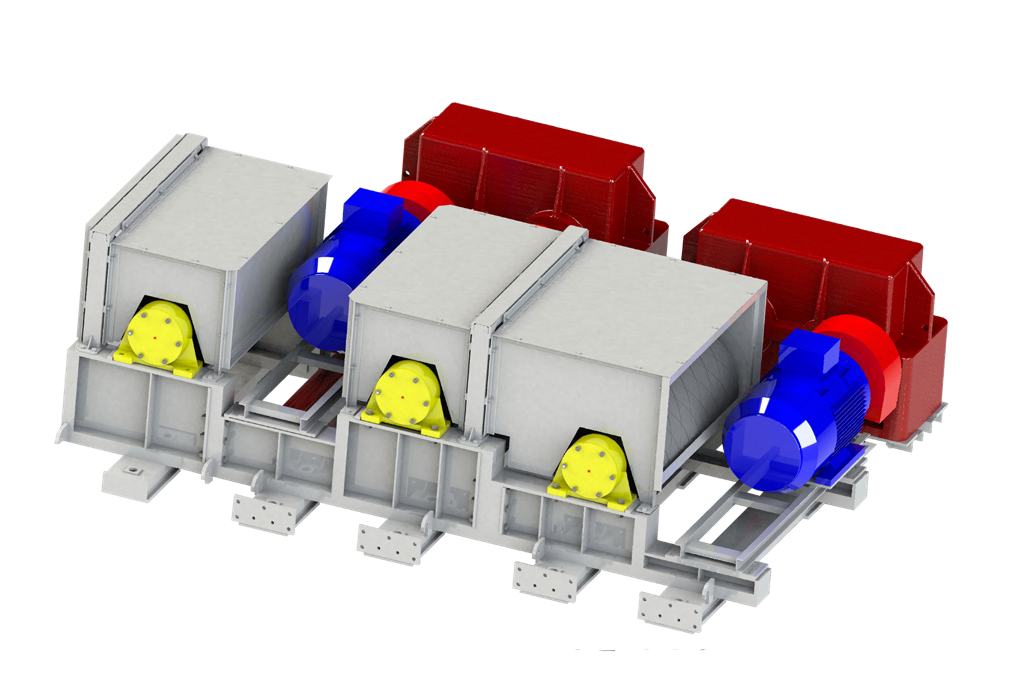

L1000T.06.05.000 DRIVING STATION

L1000T.06.05.000 DRIVING STATION

Deflector rollers are installed in the station fence to center the belt. The driving station can be optionally equipped with:
× Original design gearbox with a two-drum drive;
× Block or disk brake;
× Foundation frame.

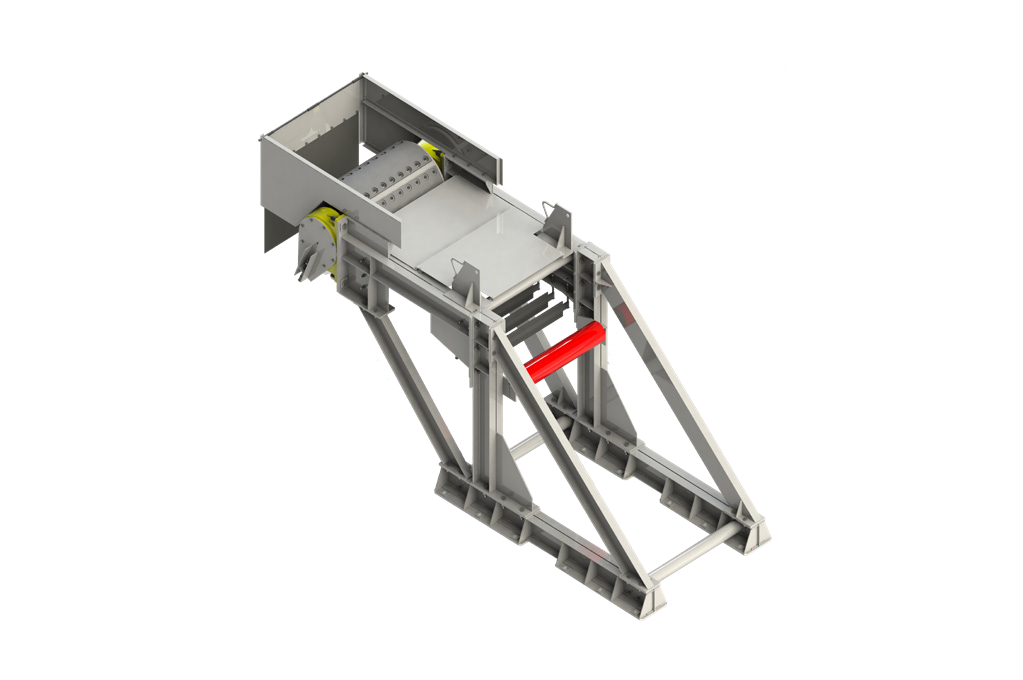

L1200T.20.00.000 UNLOADING STATION

L1200T.20.00.000 UNLOADING STATION

The basic version provides the boom outreach of 2.2 m. Optional 2 m long sections are available for increased boom outreach. Lined drums (vulcanized or lined with removable plates) are available as an option.

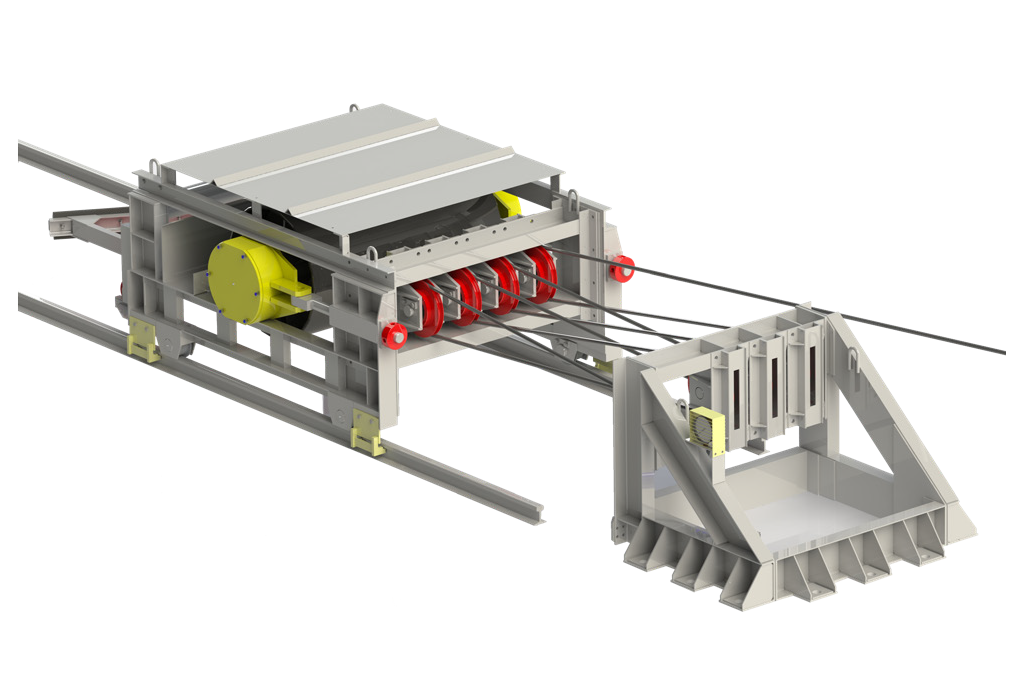

L1200T.15.00.000 END TENSIONING STATION

L1200T.15.00.000 END TENSIONING STATION

The belt is centered by deflector rollers (basic version) or by a centering device. A belt cleaner is available as an option. In the basic version, the belt is guided on the rail track by grippers (collector shoe). Additional roller versions for travel on channel or rail are available as an option.

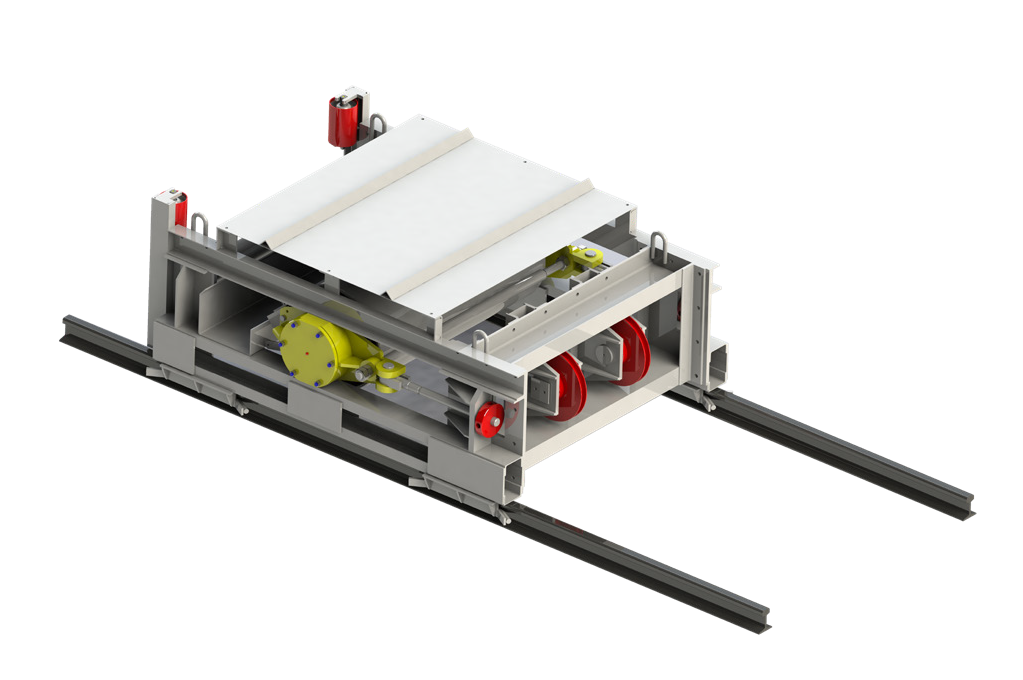

L1000T.13.00.000 TENSIONING CARRIAGE

L1000T.13.00.000 TENSIONING CARRIAGE

The tensioning carriage is designed as a collapsible frame structure. In case of L1000T conveyors, it is equipped with a holding prop with a hydraulic tensioning sensor. To increase the tension, 4- or 6-fold pulley tackle is used.

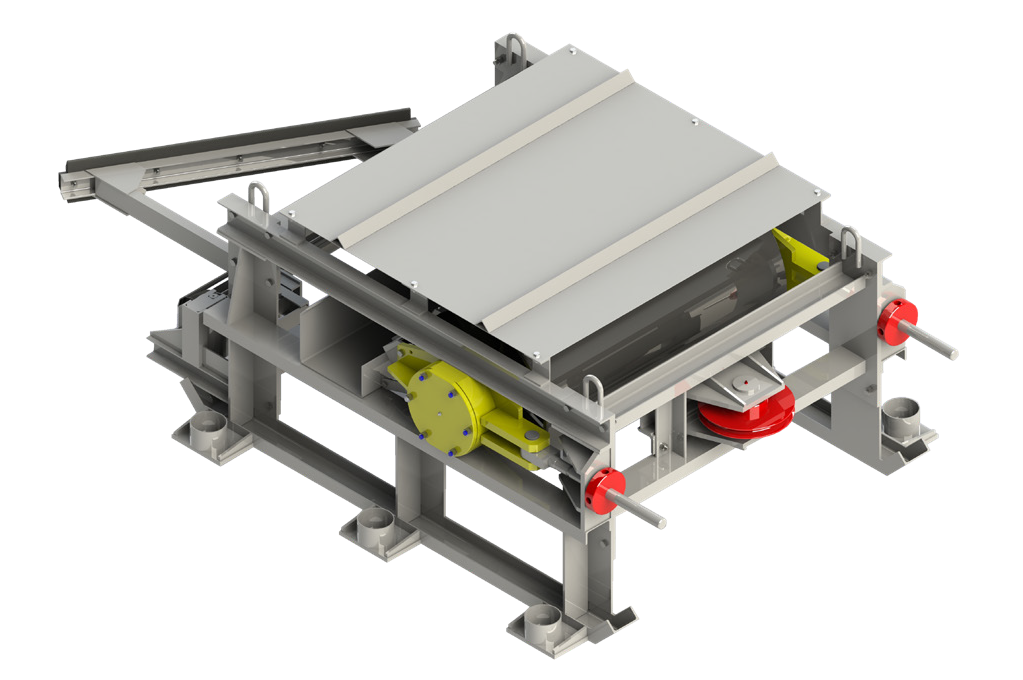

L1000T.30.00.000-10 END STATION

L1000T.30.00.000-10 END STATION

The end station is designed as a collapsible frame structure. A tray with centering device or belt cleaner can be ordered as an option. In addition, it is possible to install optional pulley tackle blocks.

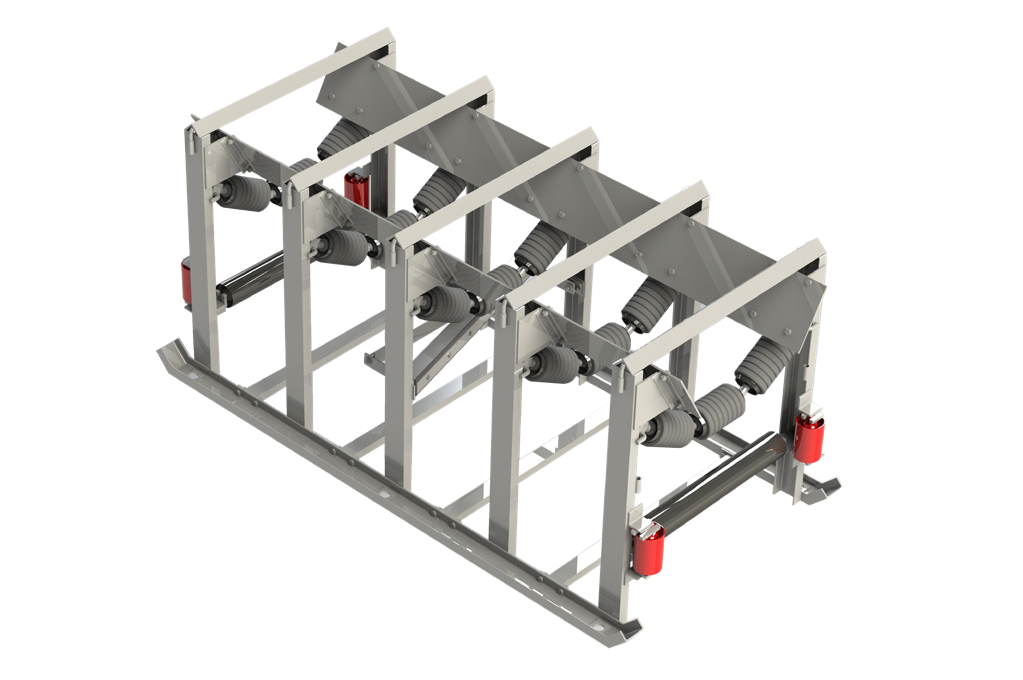

L800T.11.00.000 LOADING STATION

L800T.11.00.000 LOADING STATION

The basic version of the loading station is 3 m long. It is possible to extend the station to the required size when ordering. It is also possible to order the loading station on a common frame with the terminal skid.

L1000T.14.00.000 TENSIONING CARRIAGE

L1000T.14.00.000 TENSIONING CARRIAGE

The belt is centered by deflector rollers (basic version) or by a centering device. In the basic version, the belt is guided on the rail track by grippers (collector shoe). Additional roller versions for travel on channel or rail are available as an option.

L1000T.32.00.000 DEFLECTING STATION

L1000T.32.00.000 DEFLECTING STATION

The deflecting station is designed as a collapsible frame structure. The belt is centered by deflectors. Depending on the conveyor type, to support the return belt, it is completed with a deflector roller Ø152 mm or a drum Ø219 mm. A belt cleaner can be ordered as an option.

LM-71 AUXILIARY WINCH

LM-71 AUXILIARY WINCH

LM-71 auxiliary winch is designed to be used in underground excavations in «RV» version. It is used for tensioning conveyor belts and auxiliary works associated with moving loads. The winch can be manufactured with a conventional engine.

LOADING STATION L1000T.11.00.000

LOADING STATION L1000T.11.00.000

TENSIONING STATION L1000T.13.00.000

TENSIONING STATION L1000T.13.00.000

DEFLECTING STATION L1000T.32.00.000

DEFLECTING STATION L1000T.32.00.000

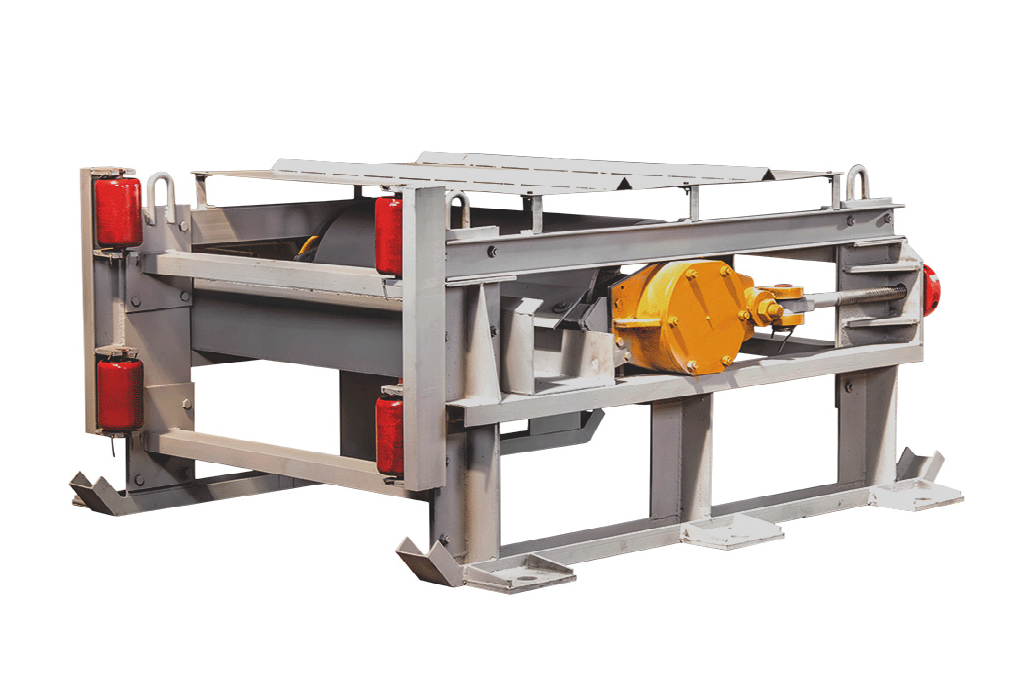

END STATION L1000T.30.00.000

END STATION L1000T.30.00.000

DRIVING STATION L800T.06.00.000

DRIVING STATION L800T.06.00.000

DRIVING STATION L1000T.50.00.000

DRIVING STATION L1000T.50.00.000

LM-71 AUXILIARY WINCH

LM-71 AUXILIARY WINCH

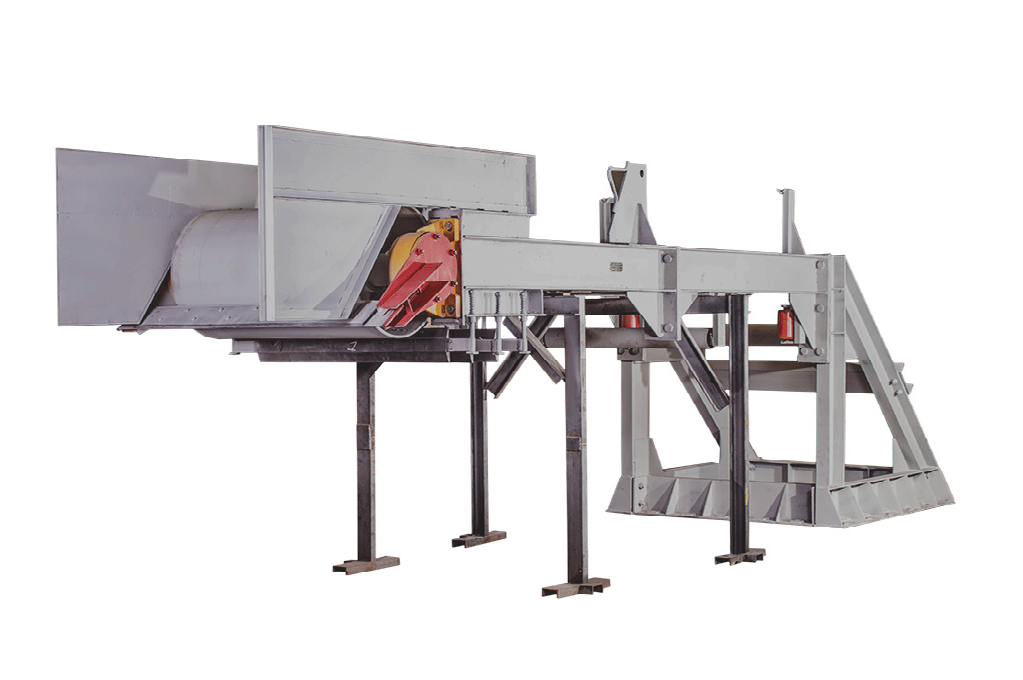

UNLOADING STATION L1000T.20.00.000-02

UNLOADING STATION L1000T.20.00.000-02

HOLDING PROP L1000T.8.00.000

HOLDING PROP L1000T.8.00.000

Belt loaders

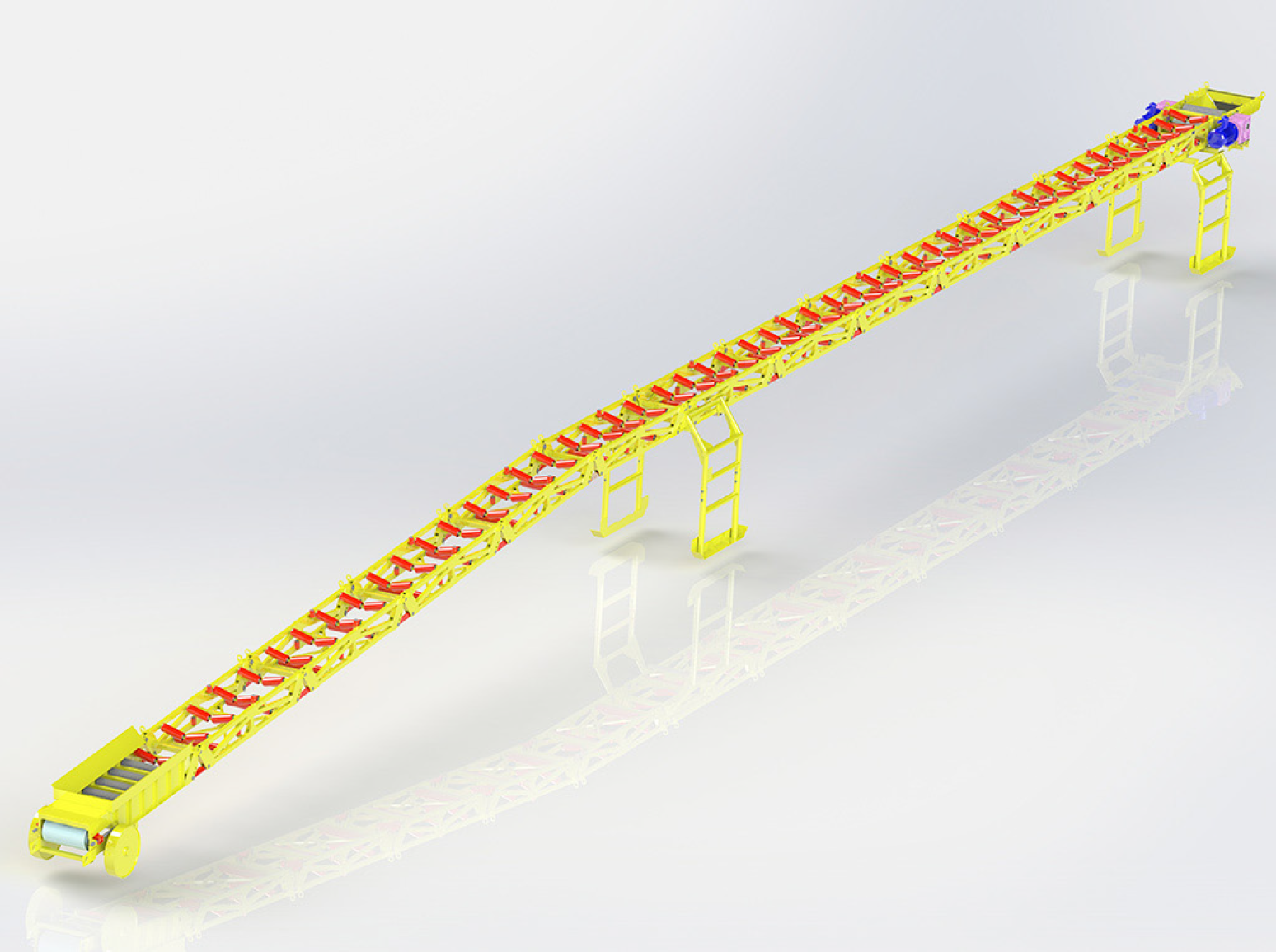

Suspended version
Ground version

Our company manufactures belt loaders of LP600T and LP800T sizes for receiving, transporting and loading the rock mass from the tunneling machine conveyor to the belt conveyor in the mine face with different capacities and belt travel speed.

Structurally, belt loaders are made in two basic configurations:
- Suspended version (on a monorail);
- Ground version (on a portal strut).

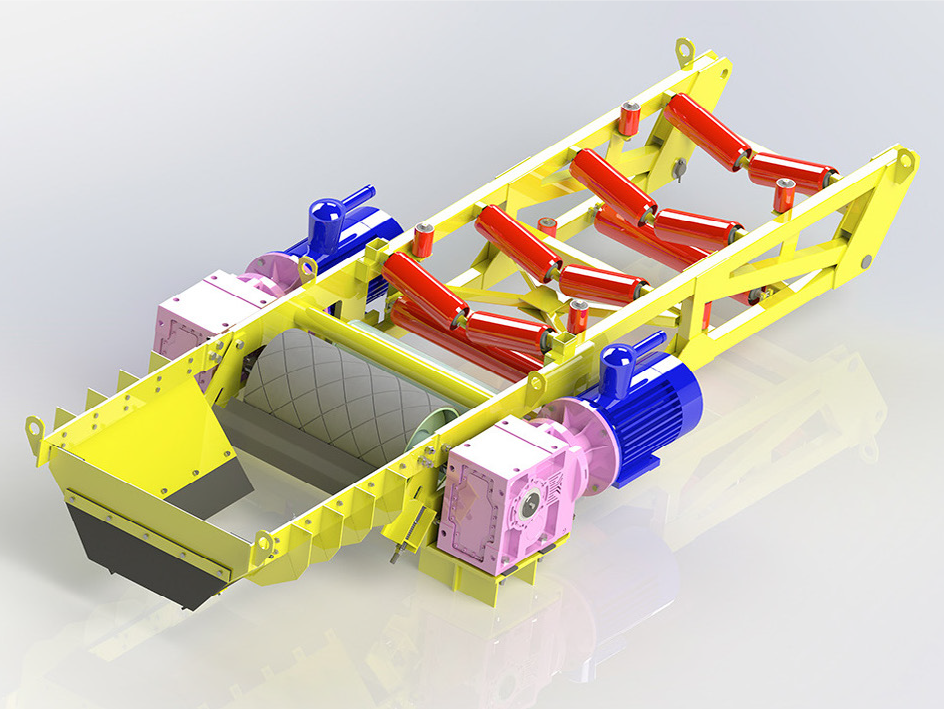

LP600T.05.05.000 UNLOADING DRIVING SECTION

LP600T.05.05.000 UNLOADING DRIVING SECTION

This section is designed as a space truss with left, right or coupled drive arrangement. The drive type is geared motor rated from 15.5 to 22 kW. The belt is centered by deflector rollers.

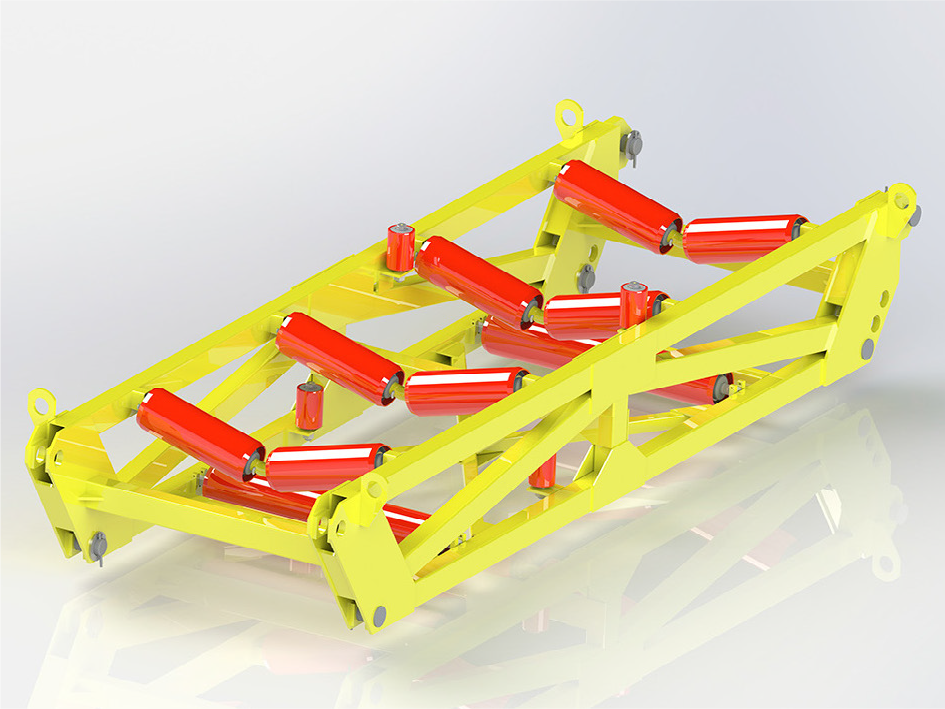

LP600T.02.00.000 INTERMEDIATE SECTION

LP600T.02.00.000 INTERMEDIATE SECTION

The intermediate section is designed as a space truss. The drive type is geared motor rated from 15.5 to 22 kW. The belt is centered by deflector rollers.

LP600T.03.00.000 LOADING SECTION

LP600T.03.00.000 LOADING SECTION

The section is made as a frame structure. Depending on the order, it can be equipped with wheelsets, collector shoes or a towing device. It is supplied with shock-absorbing rollers and tensioning screw device.

LP600T.05.05.000 UNLOADING DRIVING SECTION

LP600T.05.05.000 UNLOADING DRIVING SECTION

This section is designed as a space truss with left, right or coupled drive arrangement. The drive type is geared motor rated from 15.5 to 22 kW. The belt is centered by deflector rollers.

LP800T.02.00.000 INTERMEDIATE SECTION

LP800T.02.00.000 INTERMEDIATE SECTION

The intermediate section is designed as a space truss. The belt is centered by deflector rollers.

LP800T.03.00.000 LOADING SECTION

LP800T.03.00.000 LOADING SECTION

The section is made as a frame structure. Depending on the order, it can be equipped with wheelsets, collector shoes or a towing device. It is supplied with shock-absorbing rollers and tensioning screw device. The belt is centered by deflector rollers. A flow conditioner is installed in the end of the drive.

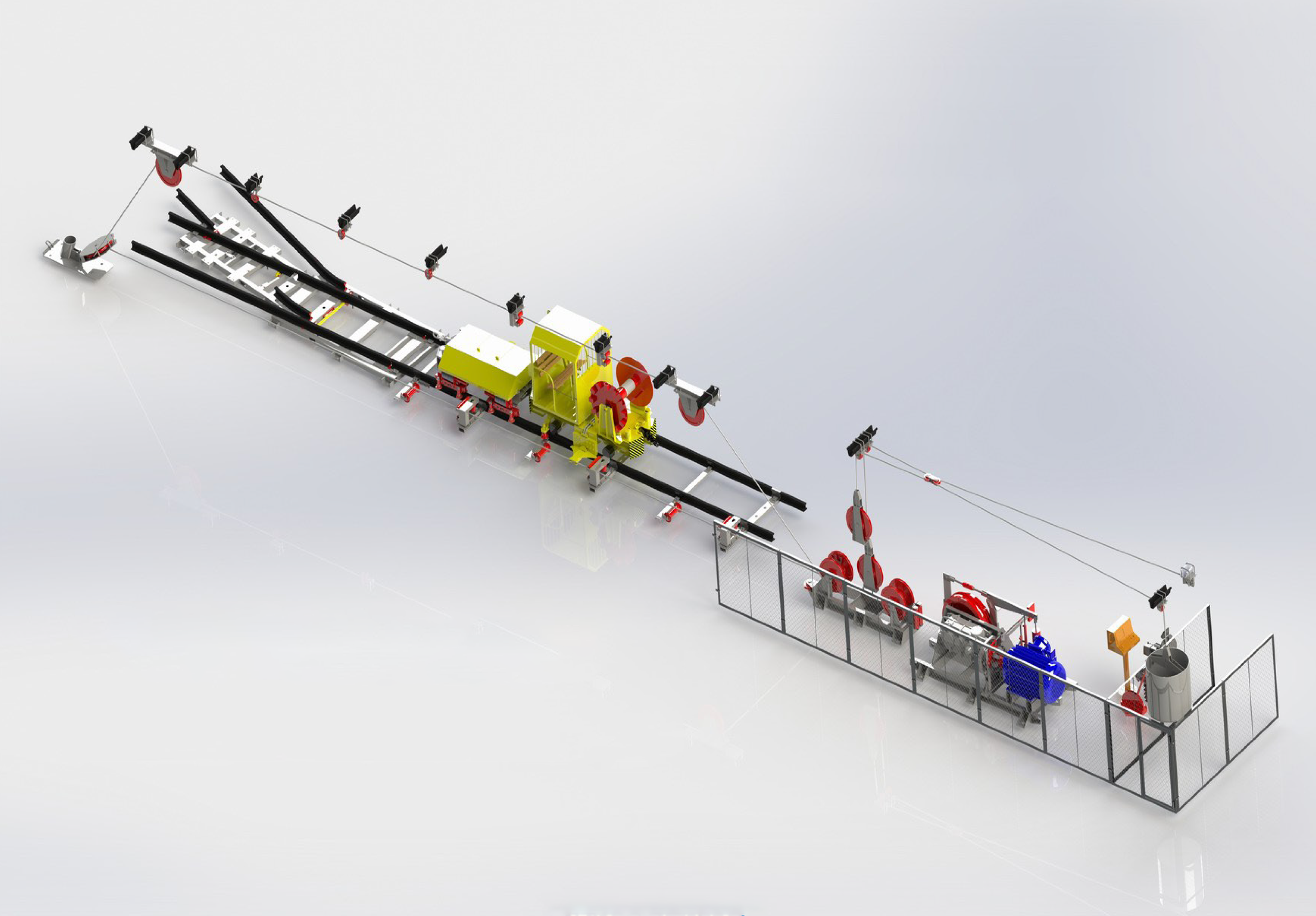

GNR
Our company manufactures ground mining ropeways (GNR) for a rail track system with a track gauge of 600 or 900 mm for R24 or R33 rails. The ropeway design assumes the location of the traction rope in the center or on the side of the rail track.
Our company manufactures ground mining ropeways (GNR) for a rail track system with a track gauge
of 600 or 900 mm for R24 or R33 rails. The
ropeway design assumes the location of
the traction rope in the center or on
the side of the rail track.
The ropeway
is designed for cargo
transportation in mine trolleys
with hooked coupling and people
in passenger trolleys along straight and
curved sectional and main mining excavations
with alternating profile of coal and slate mines with all categories of gas and dust hazards.
The ropeway is designed for cargo transportation in mine trolleys with hooked coupling and people in passenger trolleys along straight and curved sectional and main mining excavations with alternating profile of coal and slate mines with all categories of gas and dust hazards.

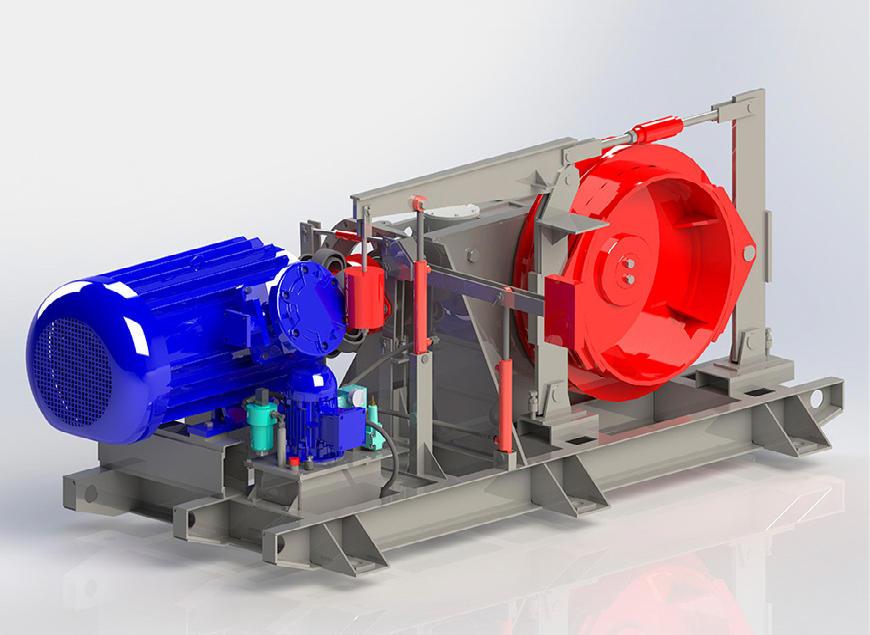

GNR DRIVING STATION.01.00.000

GNR DRIVING STATION.01.00.000

It is designed to move the road train along the mining excavation, and it provides smooth starting and stopping of the train, as well as stepless speed control. The drive is equipped with a friction pulley and two shoe brakes acting as service and safety one. The service brake impacts the clutch brake field, which is mounted on the gearbox input shaft. The safety brake affects the brake rim of the friction pulley directly. The brake is released synchronously with the drive. The brake is automatically applied when the drive is switched off. The pulling force on the rope is transmitted by the frictional forces between the pulley and the rope.

GNR BRAKING CAR.02.00.000

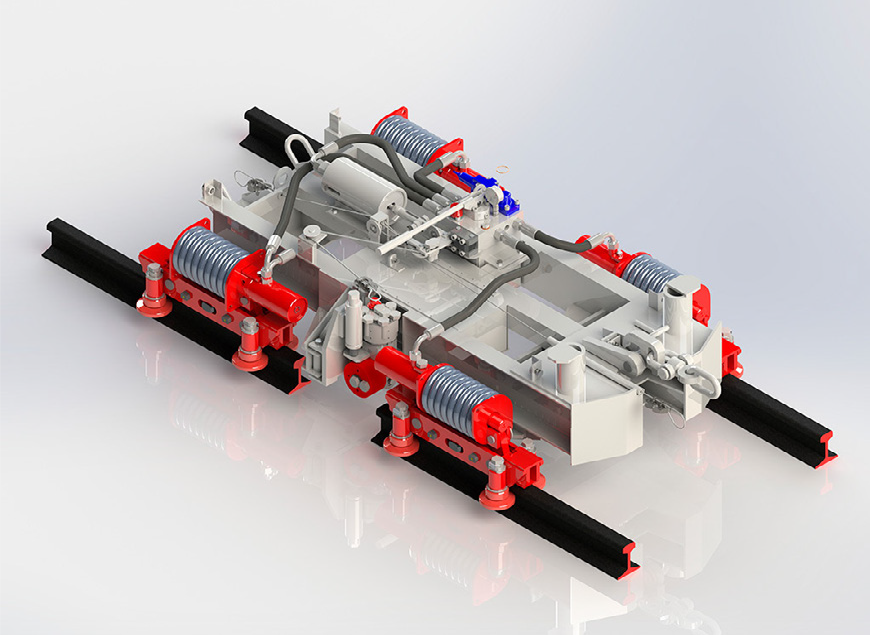

It is designed to produce braking force in case of an emergency stop of the train. The car moves on arrester rollers along the rail track. The arresters are activated in automatic mode when the train reaches the set speed, as well as in manual mode by a cable coming from the cab of the towing or passenger trolley.

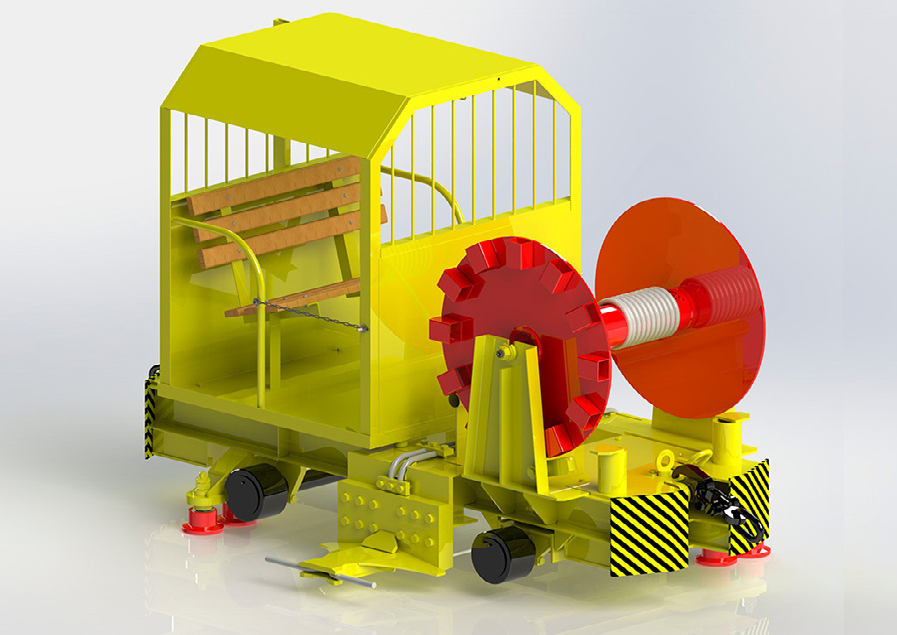

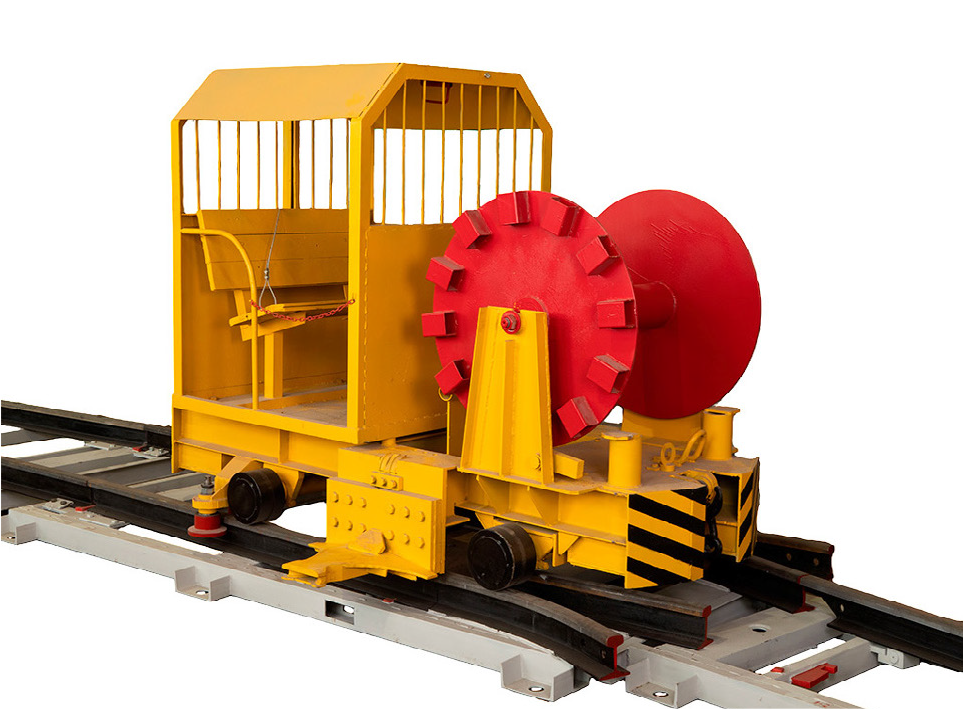

GNR TOWING TROLLEY.03.00.000

GNR TOWING TROLLEY.03.00.000

It is designed to move the train by the force applied from the drive through the traction rope. To extend (shorten) the closed traction rope when increasing (shortening) the length of the GNR road, a drum for spare traction rope is installed on the towing trolley. The driver in the cab can send commands to the drive using the baton and, if necessary, releasing the cable in the upper part of the cab to activate the braking trolley in case of emergency. To hold the train in case of coupling breakage or spontaneous uncoupling of freight cars, a counter coupler is applied.

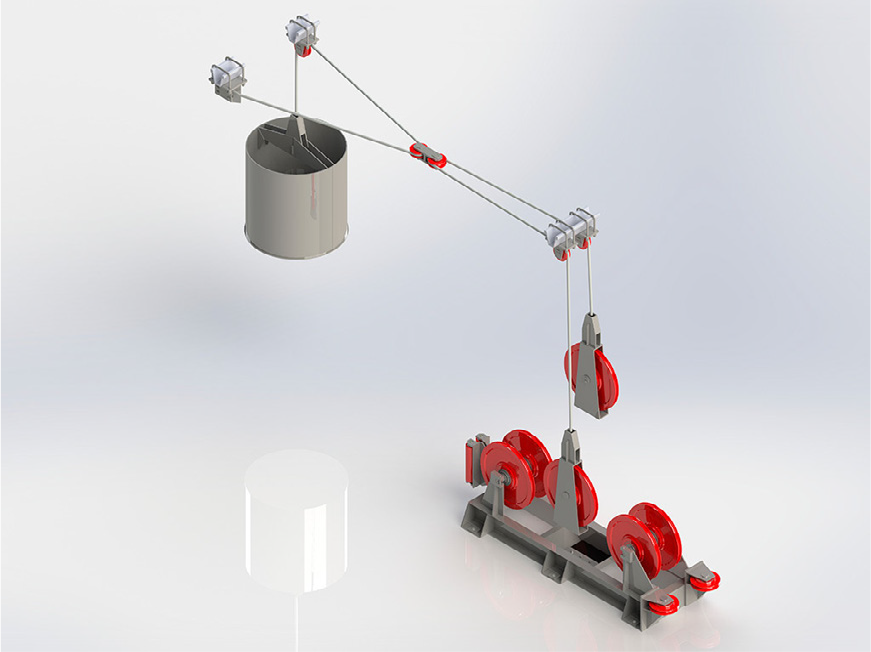

GNR TENSIONING STATION.05.00.000

GNR TENSIONING STATION.05.00.000

The tensioning station is designed for automatic tensioning of the traction rope branch running away from the pulley friction drive. When the running-in or running-out branch of the traction rope is loosened, the movable unit is lifted by the tensioning weight, which is located in the load basket and selects the slack in the traction rope.

GNR END STATION.07.00.000

GNR END STATION.07.00.000

The end station is designed to change the direction of the traction rope to the opposite side and to the top of the excavation. The picture shows an end station for roads with lateral pull.

GNR TRACK ROLLER.10.20.000

GNR TRACK ROLLER.10.20.000

The track roller is used to support the traction rope on straight sections of the track.

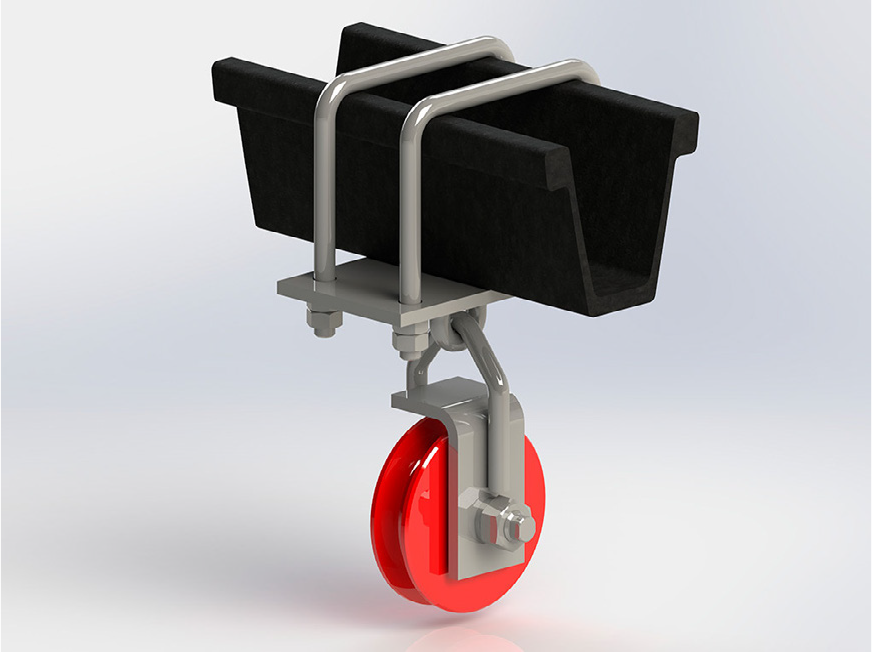

GNR UNIT.14.00.000

GNR UNIT.14.00.000

The unit is designed to support and guide the reverse branch of the closed traction rope and is installed in areas where the force direction from the rope does not change. The unit is mounted on the excavation support with clamps.

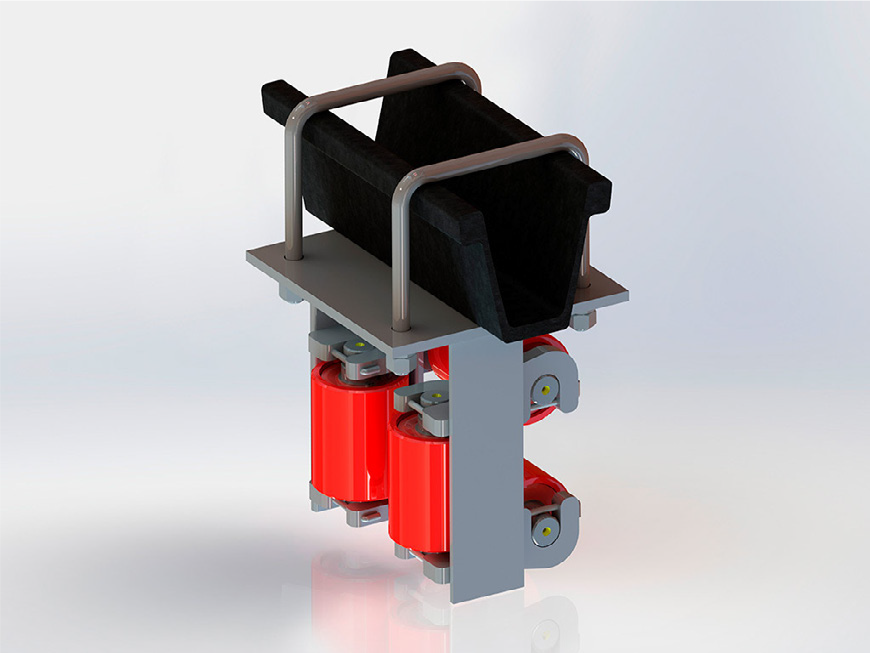

GNR LOOSE PULLEY.15.00.000

GNR LOOSE PULLEY.15.00.000

The loose pulley is designed to support and guide the reverse branch of the closed traction rope in the places of excavation curvature. The number of units to be installed on the curvature should be chosen to ensure that the bending of the traction rope on the unit does not exceed 50. The unit is mounted on the excavation support with clamps.

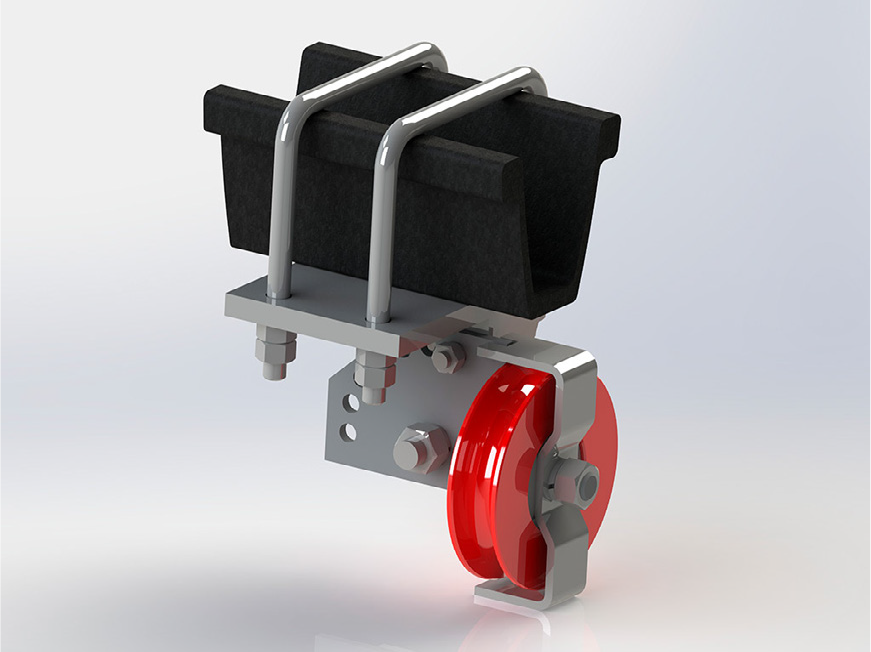

GNR ADJUSTABLE UNIT.16.00.000

GNR ADJUSTABLE UNIT.16.00.000

The adjustable unit is designed to support and guide the reverse branch of the closed traction rope. The rotation range of the unit during installation is 0-90° with 180° increments provided by a number of holes made on the swivel sector. The unit is mounted on the excavation support with clamps.

GNR SUPPORTING UNIT.18.00.000

GNR SUPPORTING
UNIT.18.00.000

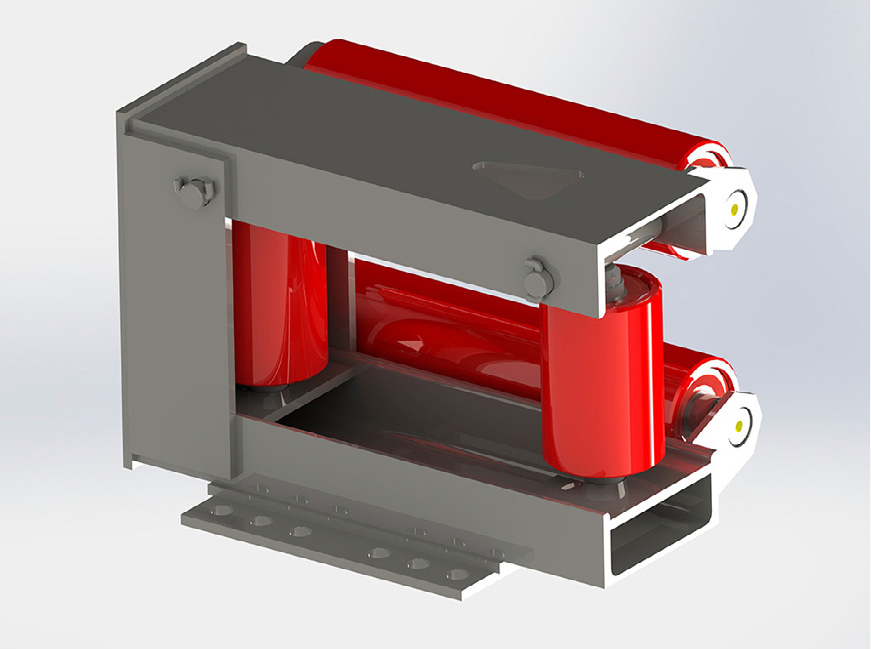

The supporting unit (device) is designed to guide and support a branch of the closed traction rope located on the side of the rail track. The vertical roller located at the rail track is hinged and deflected inside the contour when the driving lever of the towing trolley is activated. After the lever is actuated, the deflecting roller returns to its original position by its own weight, closing the rope inside the closed contour.

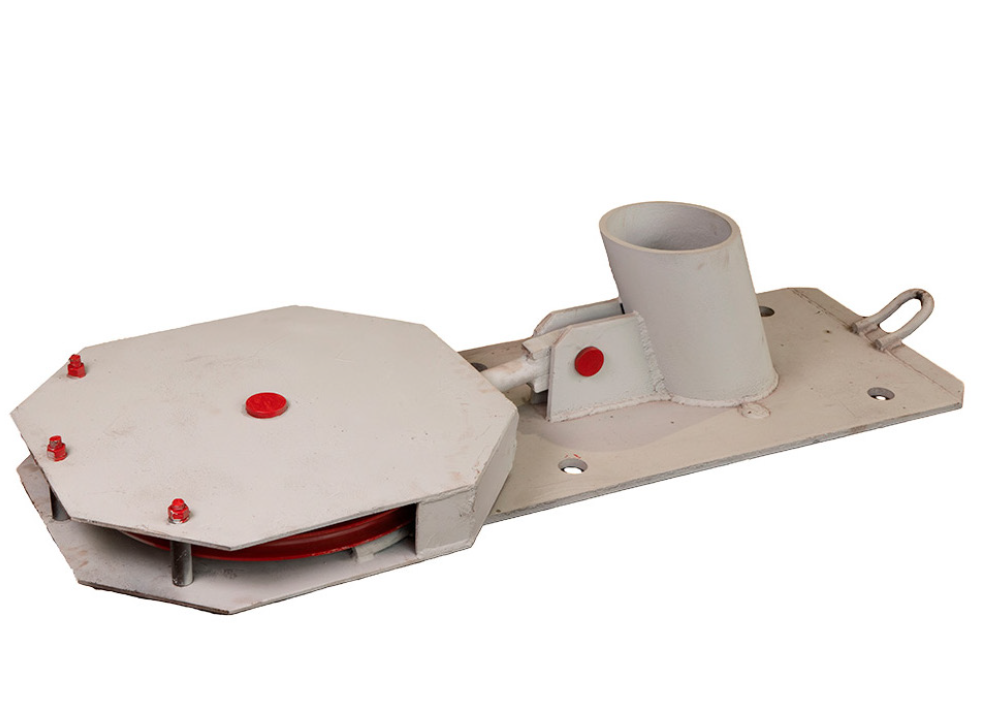

GNR DIVERTING UNIT.20.00.000

GNR DIVERTING
UNIT.20.00.000

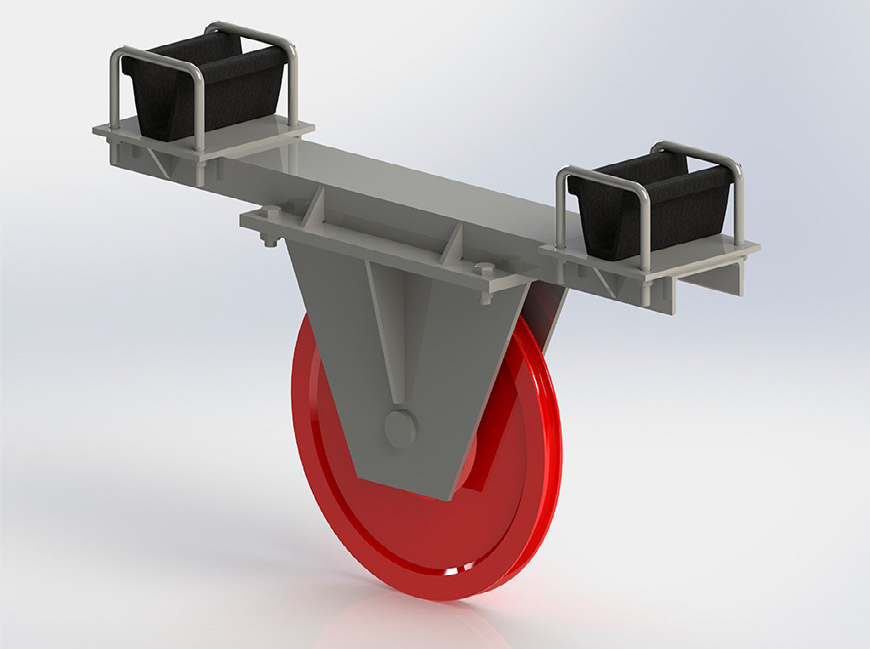

The diverting unit is designed to support and guide the reverse branch of the closed traction rope in the places of excavation curvature. It is installed on the bends of traction rope on the block over 100. The units are manufactured in different versions depending on the diameter of the traction rope and the mounting method to the excavation.

GNR RAILROAD SWITCH.24(33)-6(9)-09.00.000

GNR RAILROAD
SWITCH.24(33)-6(9)-09.00.000

It is designed to transmit mine cars to the mating excavation and to pass the road train without lifting the stabilizing rollers. The railroad switch is manufactured in different versions depending on the gauge, rail type and turning direction (right-hand and left-hand). It consists of input and output switches. Rail fixing in working positions is ensured manually by a turnbuckle and a lock. Moving rails on switches to working position is done manually or by means of PVM1-M drive.

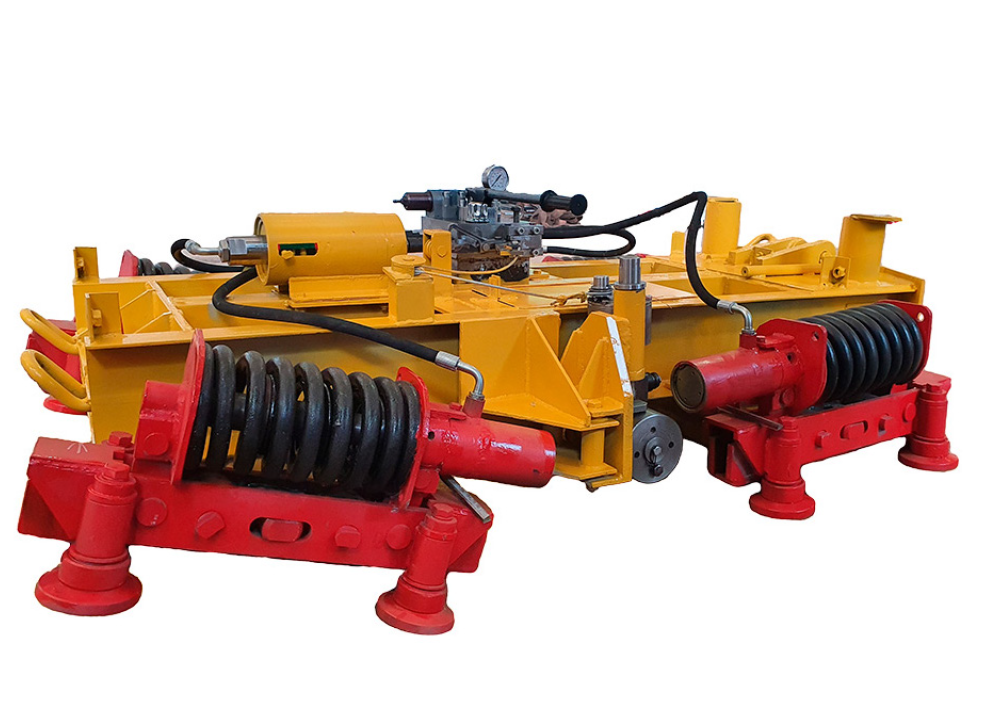

Gnr item 13
Gnr item 14
Gnr item 15
Gnr item 16
Gnr item 17
Gnr item 18

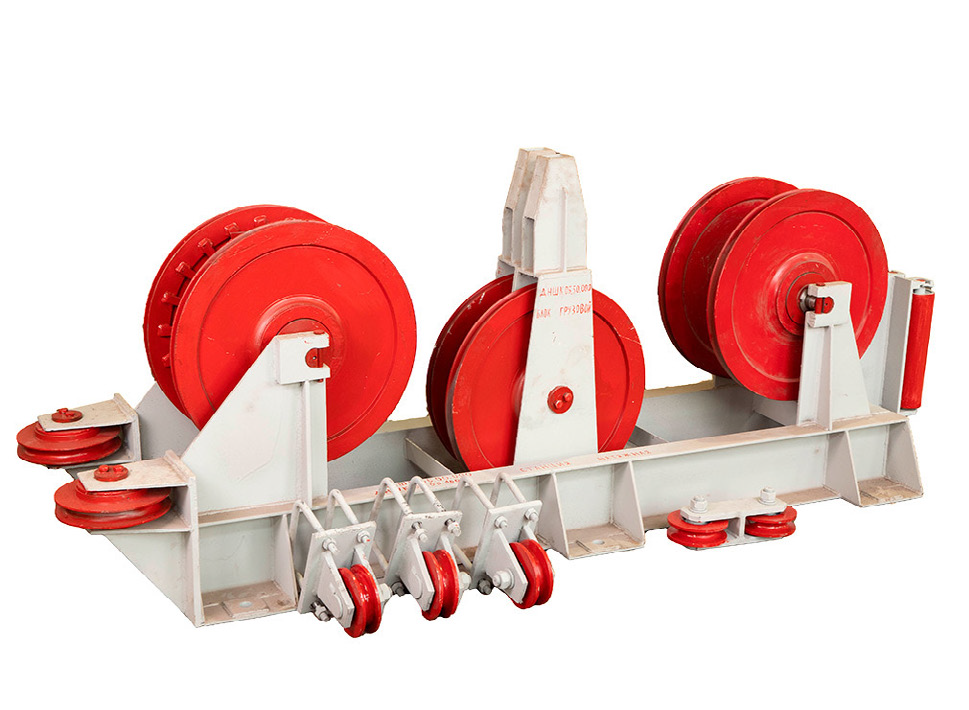

Gnr item 19

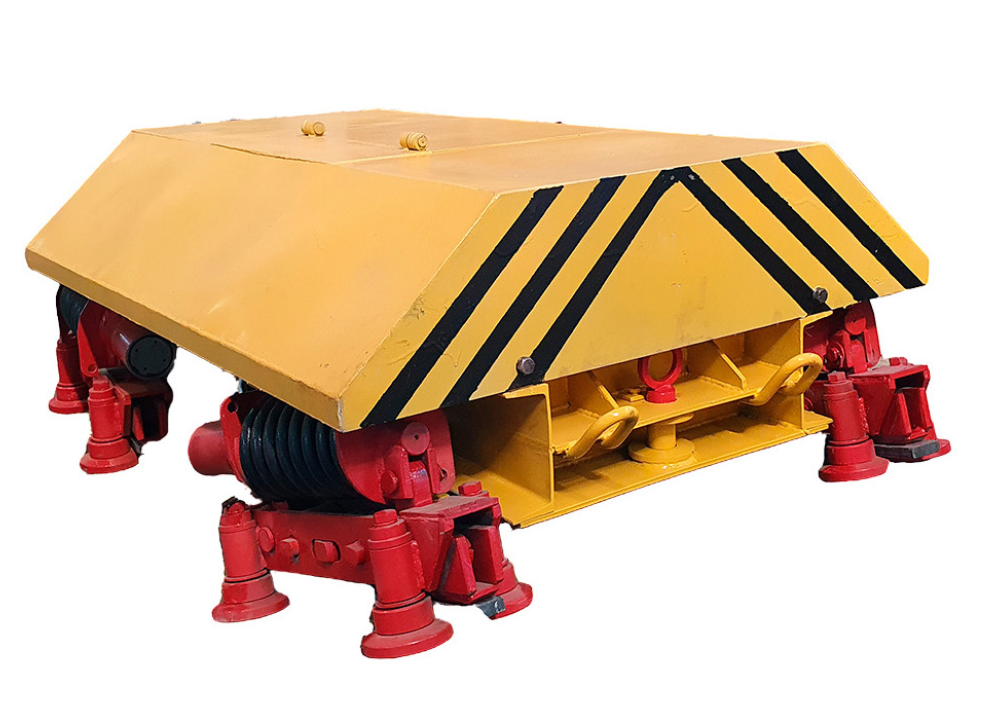

Gnr item 20
Gnr item 21

DRUMS

The following types of drums are provided by the conveyor design:
× Driving (lined),
× Deflecting,
× Tensioning (end).

Labyrinth glands or sleeves according to GOST 8752 can be used as seals.
Following the order, drums are lined with inflammable rubber according to Rema Tip-Top technology or with replaceable plates of KRU-260 (350) type.

DRIVING DRUM
Rated drum
diameter
(without liner),
mm
Sidewall length,
mm
Bearing
400 950 3,526
1,150 3,526
500 950 3,526
1,150 3,526, 3,528
630 950 3,528
1,150 3,528
1,400 3,528
800 1,150 3,632, 3,634
1,400 3,632, 3,634
1000 1,150 3,634, 3,640
1,400 3,640
1,600 3,640, 3,644
1,800 3,640, 3,644
1250 1,150 3,644
1,400 3,644
1,600 3,644
1,800 3,644
DEFLECTING (UNLOADING) DRUM
Rated drum
diameter
(without liner),
mm
Sidewall length,
mm
Bearing
219 950 3,612
1,150 3,612
500 950 3,526
1,150 3,526, 3,528
630 950 3,528
1,150 3,528
1,400 3,528
800 1,150 3,632, 3,634
1,400 3,632, 3,634
1000 1,150 3,634, 3,640
1,400 3,640
1,600 3,640, 3,644
1,800 3,640, 3,644
1250 1,150 3,640, 3,644
1,400 3,640, 3,644
1,600 3,640, 3,644
1,800 3,640, 3,644
TENSIONING (END) DRUM
Rated drum
diameter
(without liner),
mm
Sidewall length,
mm
Bearing
400 950 3,526
1,150 3,526
500 950 3,526
1,150 3,526, 3,528
630 950 3,528
1,150 3,528
800 1,150 3,632, 3,634
1,400 3,632, 3,634
1000 1,150 3,632, 3,634
1,400 3,640
1,600 3,640, 3,644
1,800

DRIVING DRUM

Driving Drum

DEFLECTING (UNLOADING) DRUM

DEFLECTING (UNLOADING) DRUM

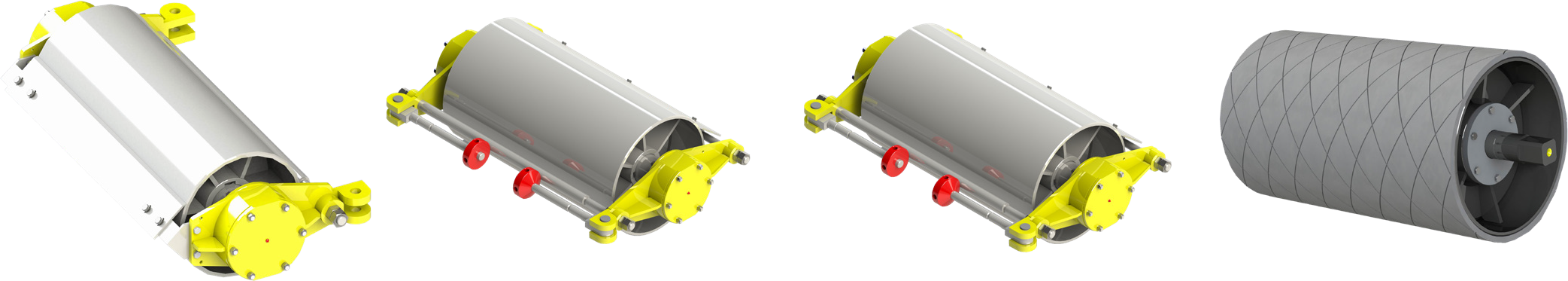

TENSIONING (END) DRUM

TENSIONING (END) DRUM

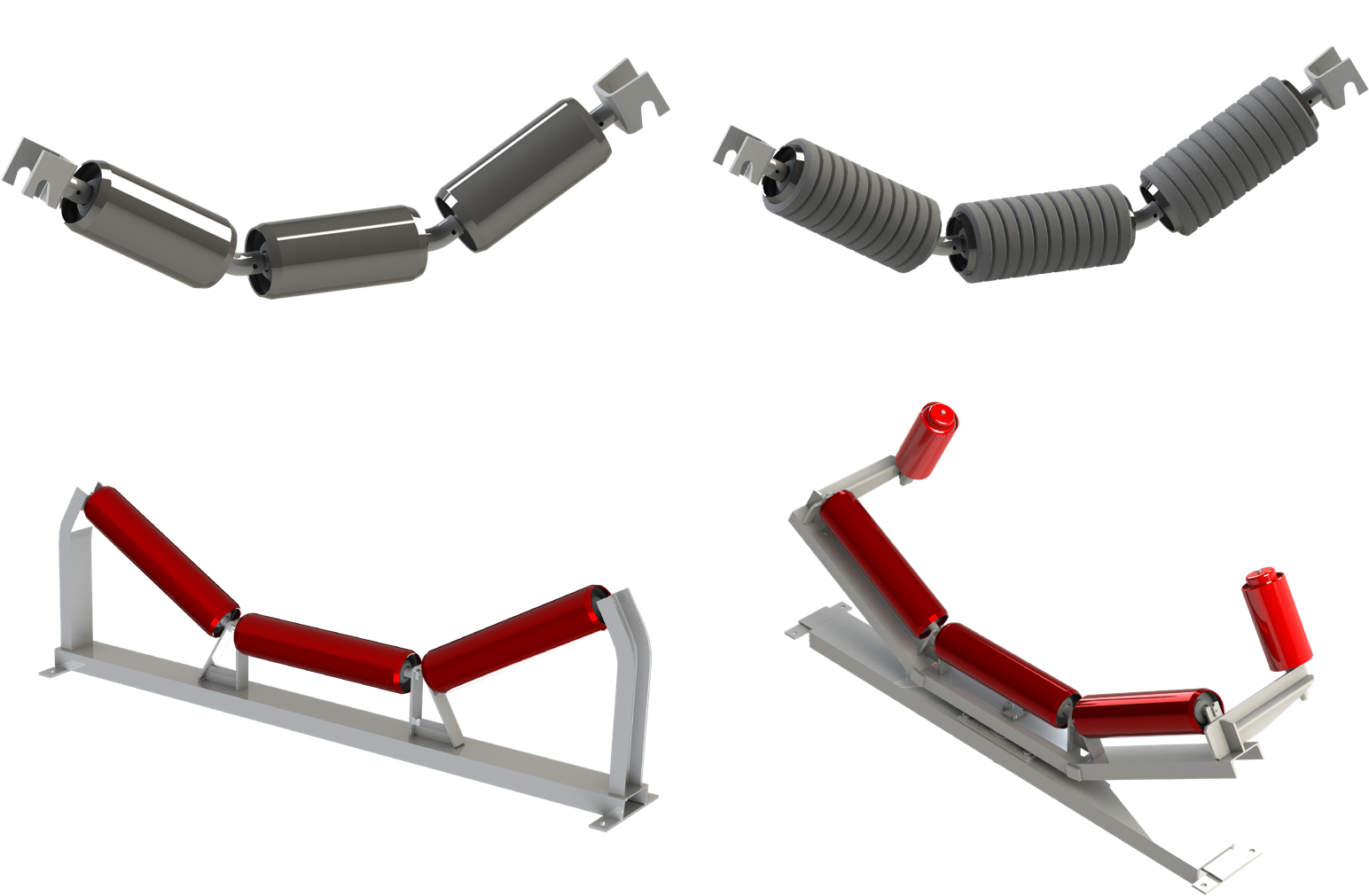

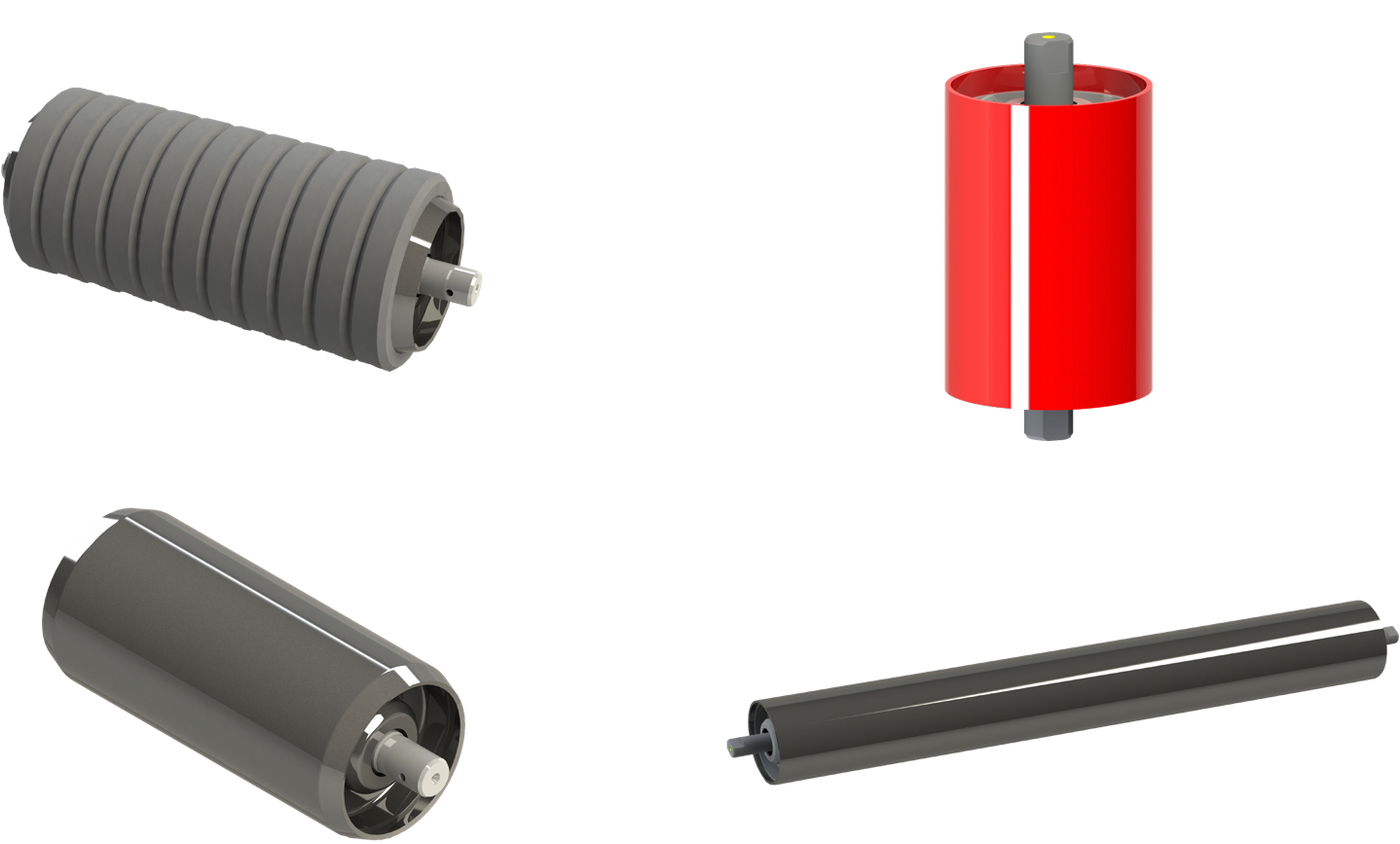

The rollers are designed to support the belt branches in belt conveyors. Rollers and roller supports are installed on the elements of the conveyor load bearing structure with the possibility of adjusting their position in the horizontal plane relative to the normal line to the longitudinal axis of the load bearing structure

Our rollers are used for conveyors operating in harsh conditions of ore and coal mines, including methane and coal dust hazardous mines, as well as for open cast mines and wash houses, fuel discharge of thermal power plants and coking plants, metallurgical facilities and ports.

The rollers are manufactured in three shaft versions: through-edge, blind-edge, and with a hole. A version with shock-absorbing rings is available as an option. Shaft and sidewall lengths can be specified either based on specifications or according to customer’s dimensions.

The rollers

The roller chain is a suspended roller support to be mounted on overhead rope and cable conveyors for transportation of large-sized cargo. These roller supports provide great advantages over rigid ones. If the torque value absorbed by the bearing unit under an external load in the range of 1.0...4.0 kN is 7...35 N for a roller on a rigid support, the torque value for a roller on a flexible support (chain) is just 0.2...1.2 Nm. This considerably increases the service life of the bearing.

Flexible elements reduce the dynamic loads on the belt by about half, which allows you to increase the band speed by 1.4-1.5 times. The chain is available with a different number of rollers (2, 3 rollers) and the inclination angle according to the customer’s request.

Its design reduces dynamic loads, makes it possible to center the conveyor belt, and it is convenient during installation and dismantling works. It is widely used in coal industry.

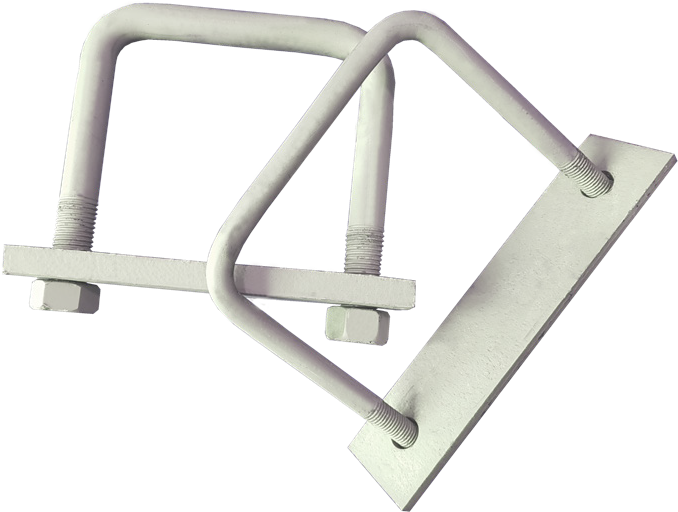

Arch and Anchor fastening metalware

The interlock of the shutoff rotating mechanical valve for SVP-22, SVP-27, SVP33 is designed to be used in excavations with estimated rock displacement up to 300 mm. These include end and permanent mine openings.

ZSh.000 type interlock is designed to be used in permanent mine openings with estimated rock displacement of up to 150 mm. The ZSh.000 rail is manufactured by the hot forging method.

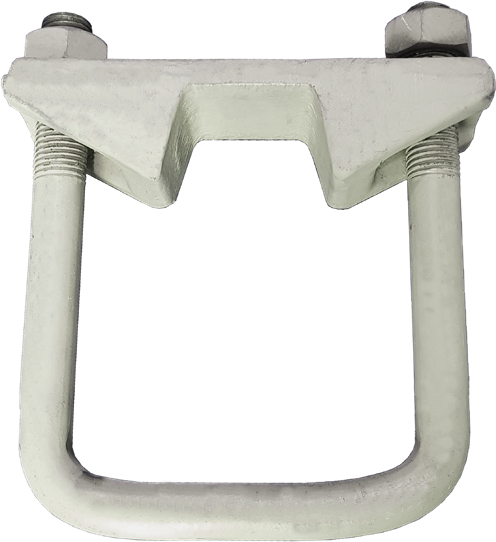

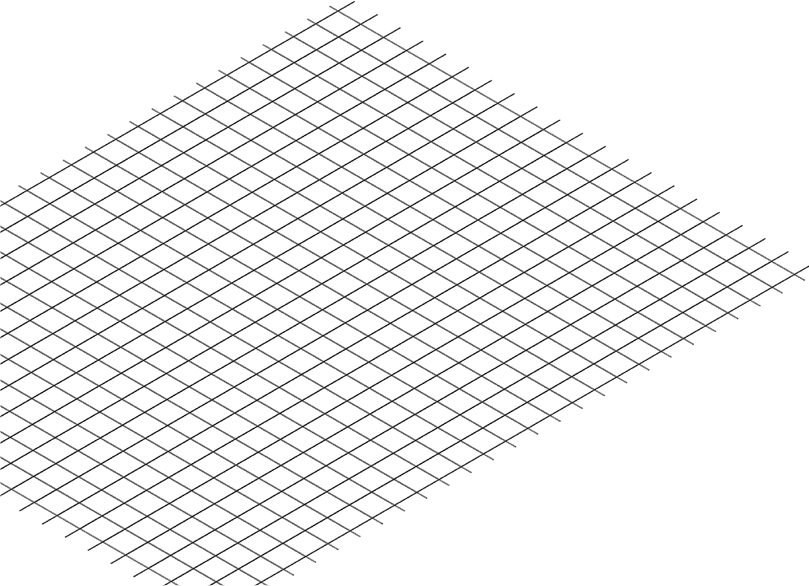

The mesh clamp is made of heat-treated or nonheat-treated wire and is used to enclose horizontal and inclined mine openings with anchor and/or arch fasteners.

M24 and M16 locks for SVP-22, SVP-27, SVP33 are designed to be used as part of the metal frame mount in mining excavations.

The interframe coupler is designed to connect adjacent mount frames to provide their stability.

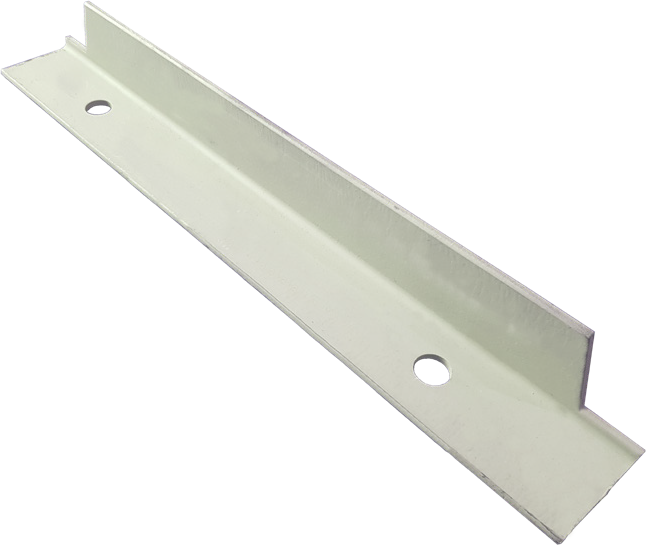

The base shoe (end thrust bearing) is used as part of the metal frame mount to prevent the support legs from digging into the ground.

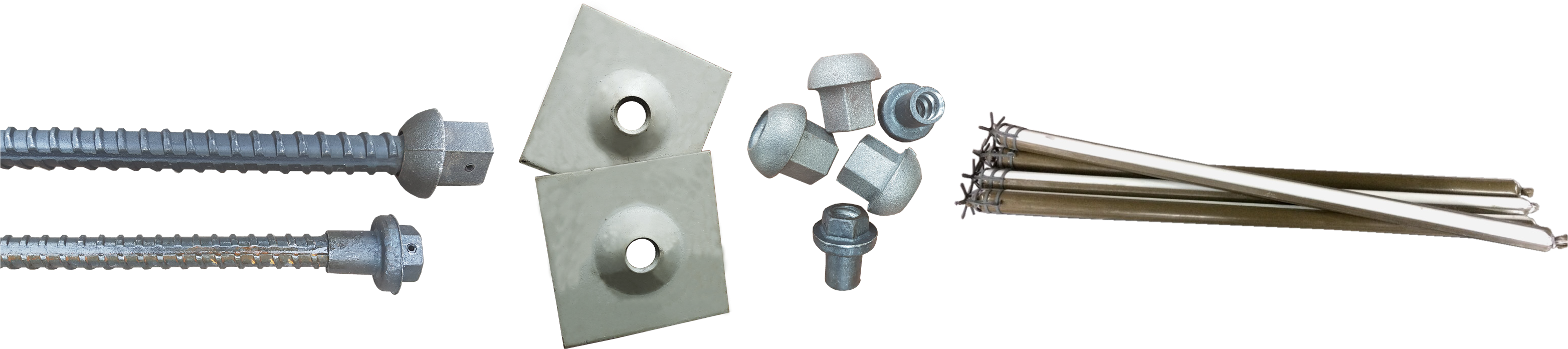

Anchor

Anchor fasteners made of rolled steel with a helical profile are designed to anchor the roof, sides and soil of excavations in mines and quarries. The anchor is fixed in the borehole by ampoules based on polyester resins and/or mineral compositions. The diameter of the anchor rod can be 16, 18, 20, 22 and 25 mm

Spherical nut is supplied as part of the anchor fasteners and is used for anchor installation and tensioning.

Polymer ampoules are used for chemical sealing of the anchors in the roof, sides and soil of mines and quarries, as well as in subway construction, tunneling, building foundations and other structures.

Anchor washer

Rope runner

Rope runner is used jointly with the anchor fastener as a supporting element for fixing the roof and sides of mines and quarries with significant roughness on the surface of the contour.

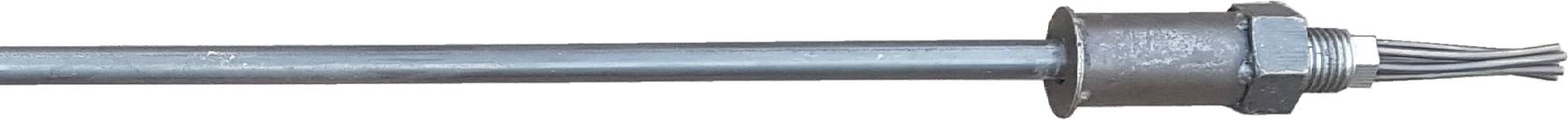

Rope anchor

Rope anchor is used in a two-level anchoring scheme along with first-level anchors, as well as in combination with other types of fasteners.

Flanged pipe and its elements (tee-branch pipes, bends)

Flanged pipe
and its elements
(tee-branch pipes, bends)

It is intended to complete the pipelines for:
× Water supply;
× Fire-fighting system;
× Mine drainage;

Degassing (ventilation) pipe and its elements (tee-branch pipes, bends)

Degassing
(ventilation) pipe
and its elements
(tee-branch pipes, bends)

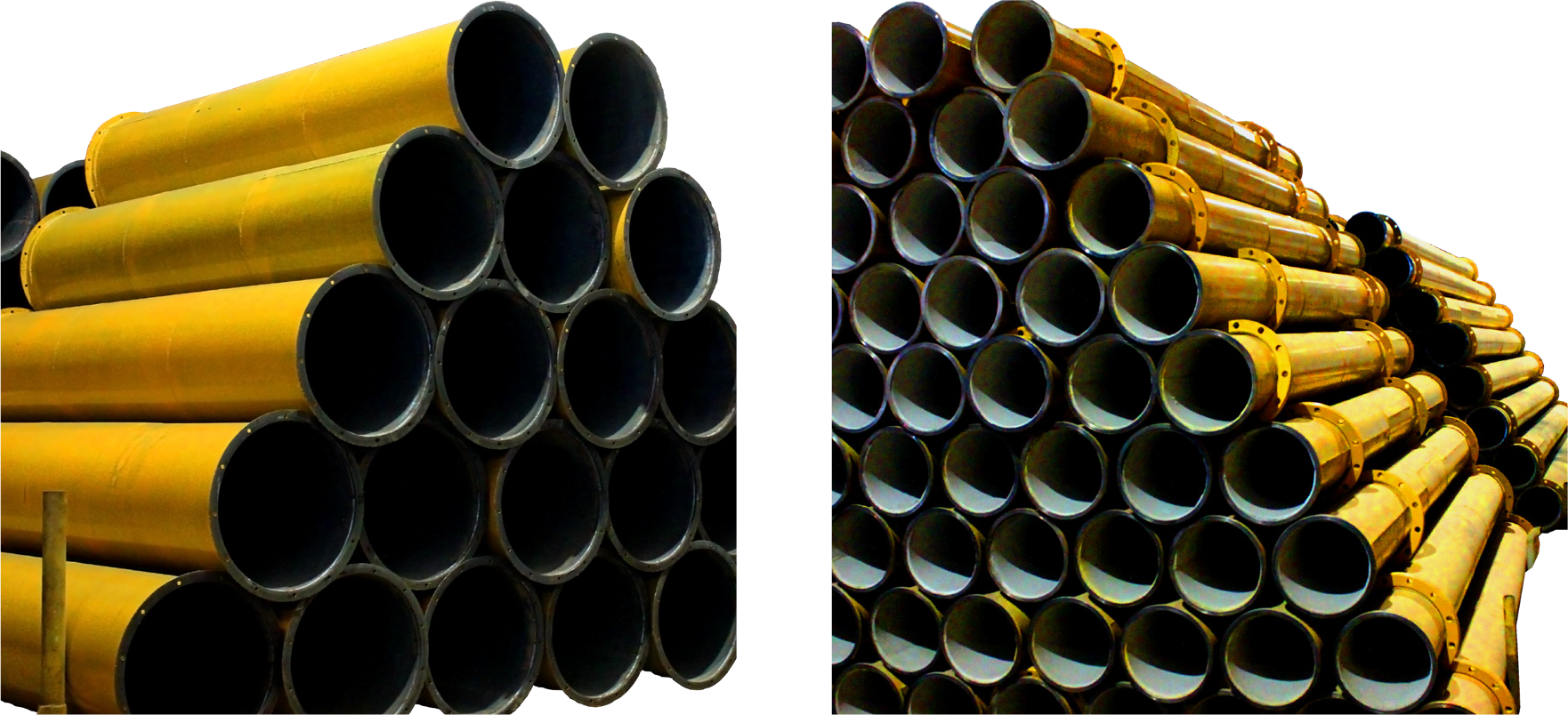

It is intended for degassing, air supply to the face of the mine, as well as for air redistribution facilities in mines and quarries, including gas and dust hazardous mines.

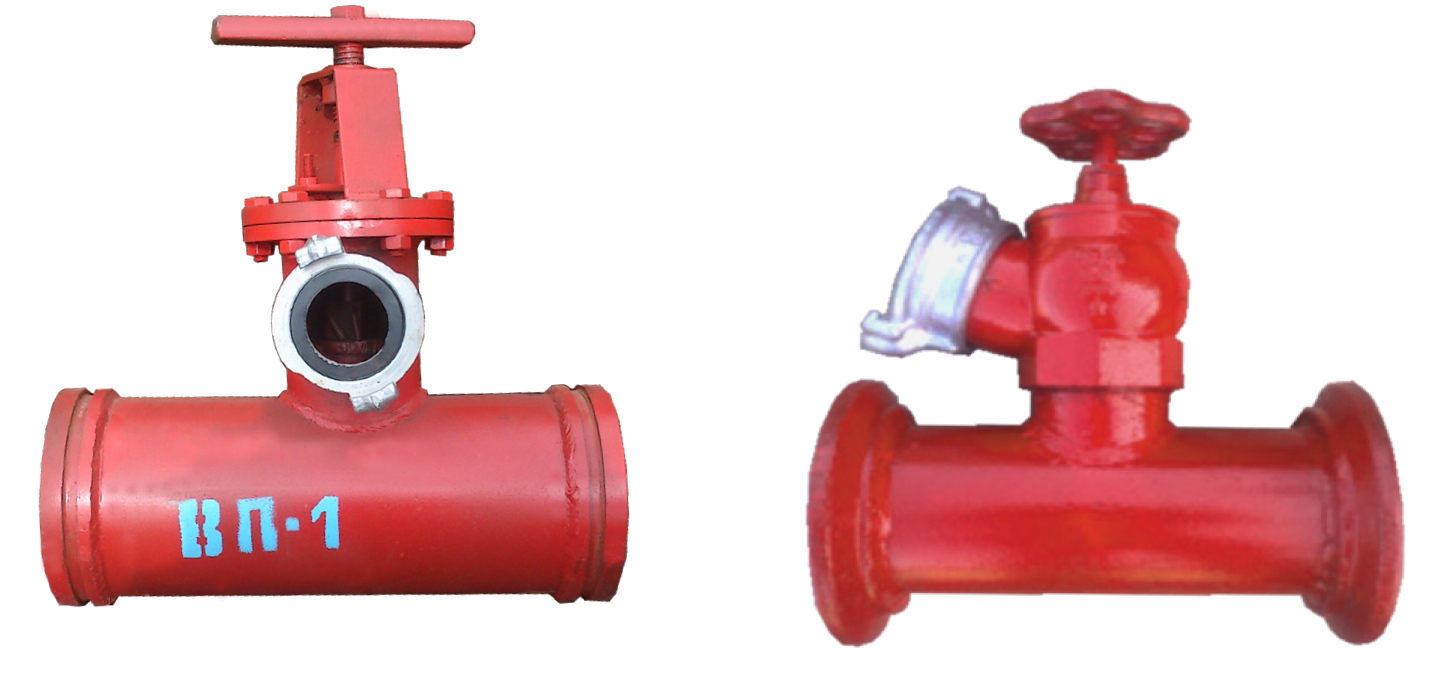

Fire-fighting inlets

Fire-fighting inlets

These inlets are built into the pipeline and designed to draw the required amount of water and ensure the stable operation of the fire-fighting system.

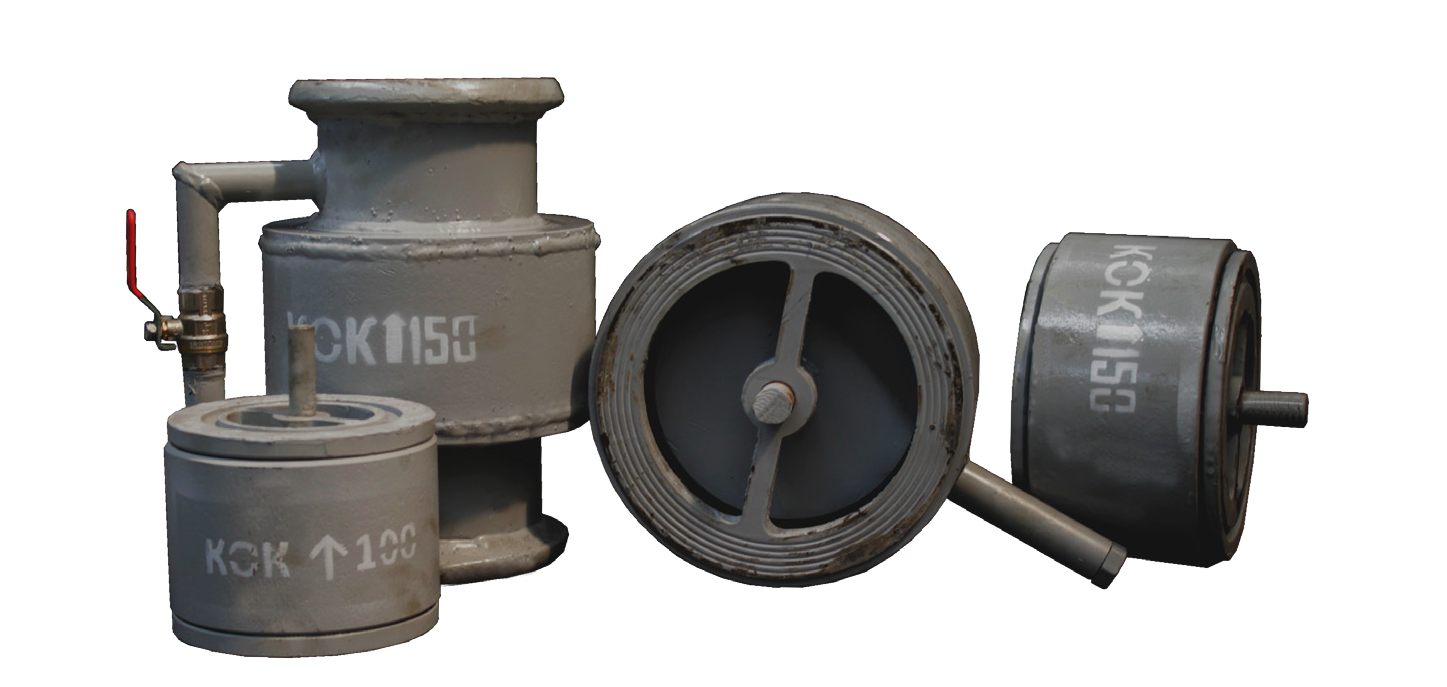

Shutoff valves

Shutoff valves

They are intended to shut off the pipeline when the pump is stopped. They can be installed in the pressure line either vertically or horizontally.

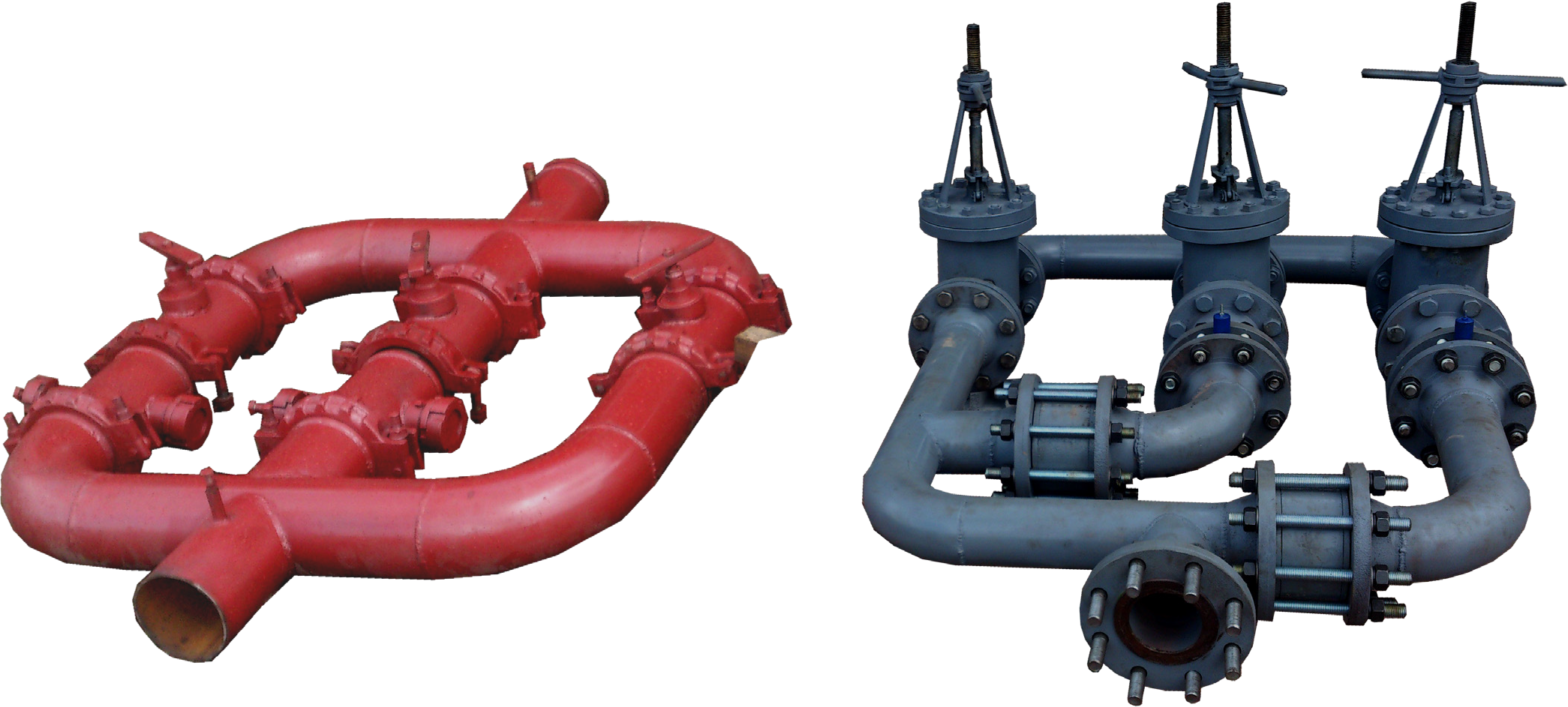

Mine pressure reducing device

Mine pressure reducing device

It is intended to reduce water pressure in underground fire-fighting systems. Its long service life and reliability is achieved by manufacturing the main parts from high-resistance stainless steels
